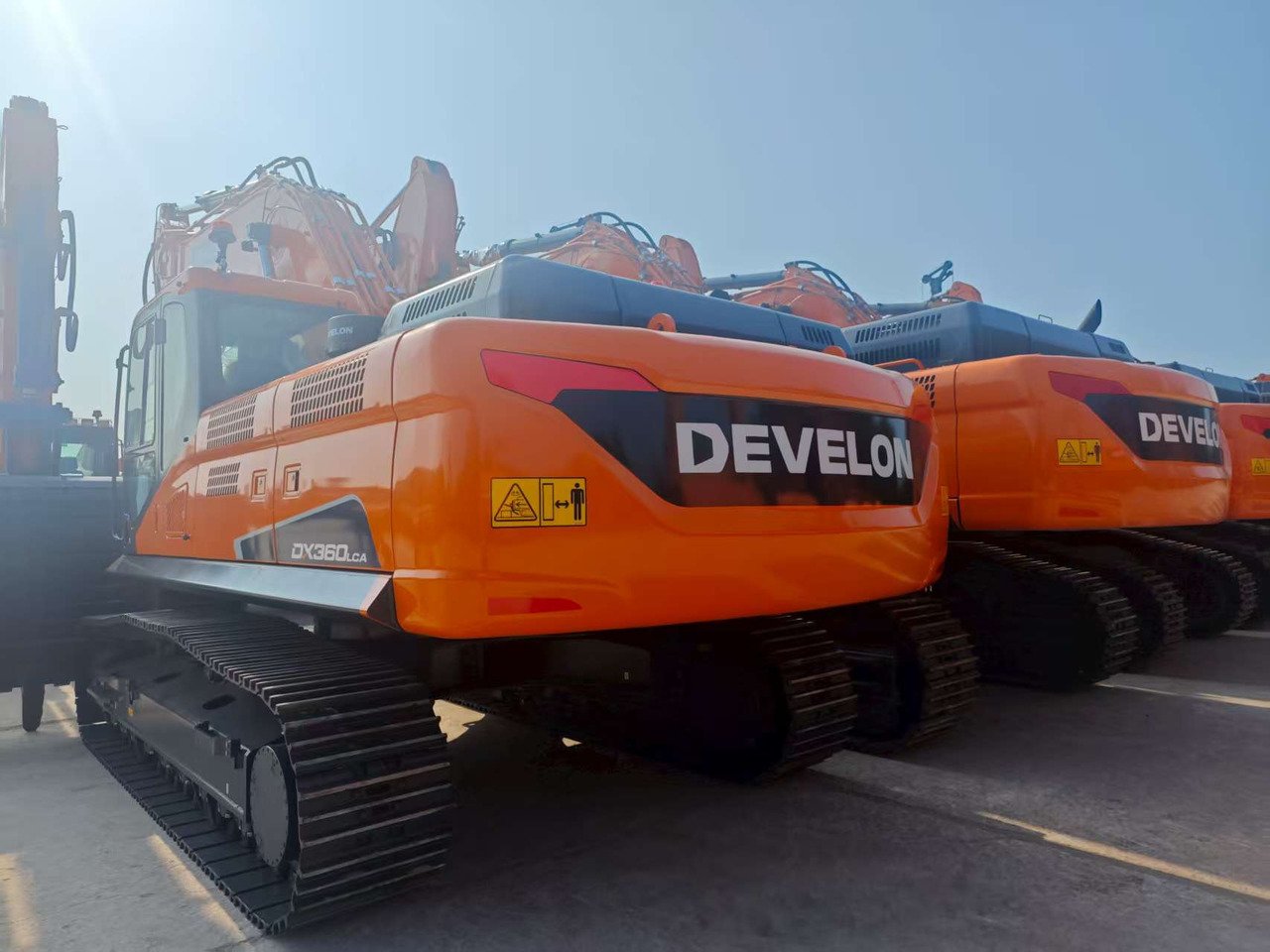

Brand New Develon DX360LCA-7B Excavator
✅ Detailed Description
The DX360LCA-7B Excavator is a mid-sized crawler excavator engineered for heavy-duty construction and mining. Developed by Develon, formerly under the Doosan brand, it combines advanced hydraulic systems, high engine power, and fuel efficiency for modern job sites.
Equipped with the DEVELON DX12 engine, it provides 238 kW (319 HP) gross power, massive torque, and low fuel consumption. The hydraulic drive and planetary gear reduction ensure fast swing speed, excellent breakout force, and stable operation on any terrain.
Its hydraulic system integrates axial plunger travel motors and wet multi-brake swing motors for smooth movement, precise control, and excellent gradeability. The 6,245 mm HD boom with 2.9–3.2 m arms offers flexible reach, while bucket capacities range from 1.7–2.32 m³, adapting to different site requirements.
With bucket breakout forces up to 24.7 tons (ISO standard) and bucket widths from 1602 to 1892 mm, the DX360LCA-7B provides exceptional digging power, efficient penetration, and long-term durability for all types of excavation.
ZW Group provides professional export support, rapid delivery, and flexible solutions, making the DX360LCA-7B a reliable choice for global construction projects.
✅ Key Specifications
| Items | Unit | OPT.1 | OPT.2 | OPT.3 |
|---|---|---|---|---|
| Operating Weight | ton | 36 | 35.9 | 36.5 |
| Boom | mm | 6,245 HD | 6,500 HD | 6,500 HD |
| Arm | mm | 2.6 HD | 2.9 HD | 3.2 HD |
| Bucket Capacity (SAE) | m³ | 2.32 H class | 2.32 H class | 1.94 S class |
| System Pressure | kg/cm² | 370 | 370 | 370 |
| Travel Speed (High/Low) | km/h | 5.0 / 3.2 | 5.0 / 3.2 | 5.0 / 3.2 |
| Gradeability | % (deg) | 70 (35) | 70 (35) | 70 (35) |
| Ground Pressure | kg/cm² | 0.682 | 0.680 | 0.692 |
| Digging Force (Bucket/Arm) | t | 22.1 / 22.85 | 20.7 / 19.5 | 20.7 / 19.0 |
Engine and Power System

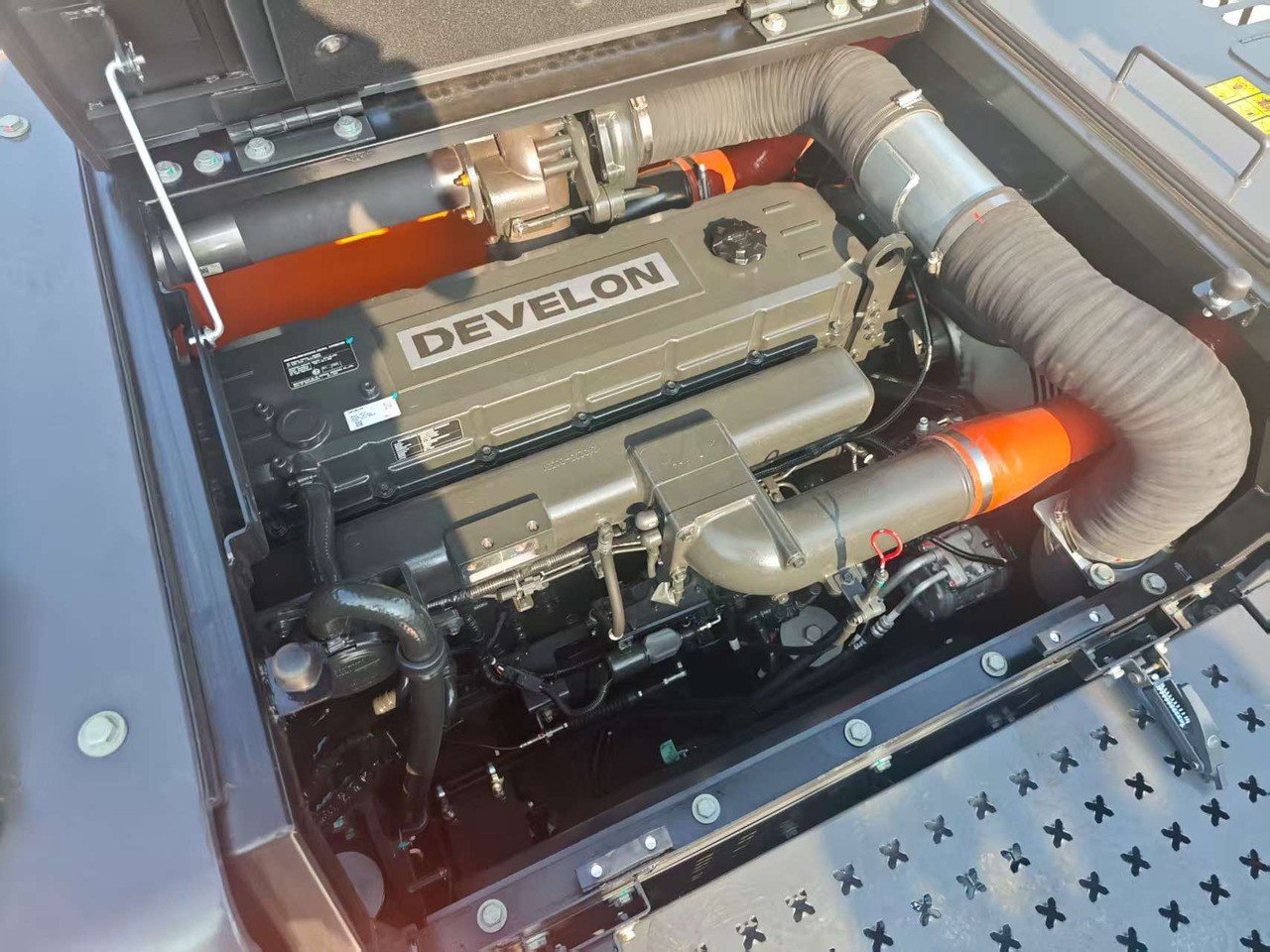

Model: DEVELON DX12
Rated Power: 238 kW (319 HP) Gross / 233 kW (312 HP) Net @ 1800 rpm
Max Torque: 142 kgf·m @ 1200 rpm
Fuel Consumption: 214 g/kW·h
Displacement: 11,051 cc
Hydraulic and Swing System
Driving Method: Hydraulic drive
Swing Operation Brake: Wet multi-brake
Hydraulic Main Pump: 2 × 350 L/min @ 100 bar, 1800 rpm
Hydraulic Circuit Pressure: 350 kgf/cm² (34.3 MPa)
Fuel and Cooling System
Fuel Tank Capacity: 610 L
Hydraulic Oil Tank: 420 L
Engine Oil: 45 L
Cooling Water: 36 L
Bucket Options
| Bucket Capacity (m³) | Width (mm) | Weight (kg) | Boom / Arm |
|---|---|---|---|
| 1.71 | 1645 | 1803 | 6,245 / 2.9 m |
| 1.95 | 1771 | 1890 | 6,500 / 3.2 m |
| 1.94 | 1602 | 2094 | 6,500 / 3.2 m |
| 2.03 | 1684 | 1820 | 6,500 / 3.2 m |
| 2.32 | 1892 | 1817 | 6,245 / 2.9 m |
🚜 Looking for a High-Performance Brand New Develon DX360LCA-7B Excavator?
Request a fast quote today and discover the power, efficiency, and durability of our Brand New Develon DX360LCA-7B Excavators. Watch our videos to see real-world digging performance, smooth operation, and professional reliability in action.
Follow us on YouTube and Facebook for the latest product updates, on-site operations, and success stories from construction and mining projects worldwide.
