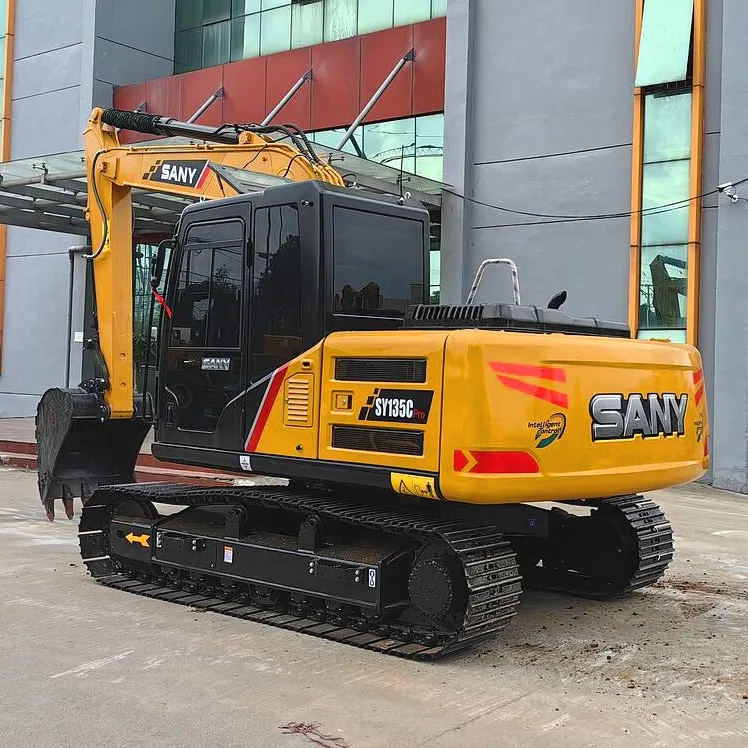

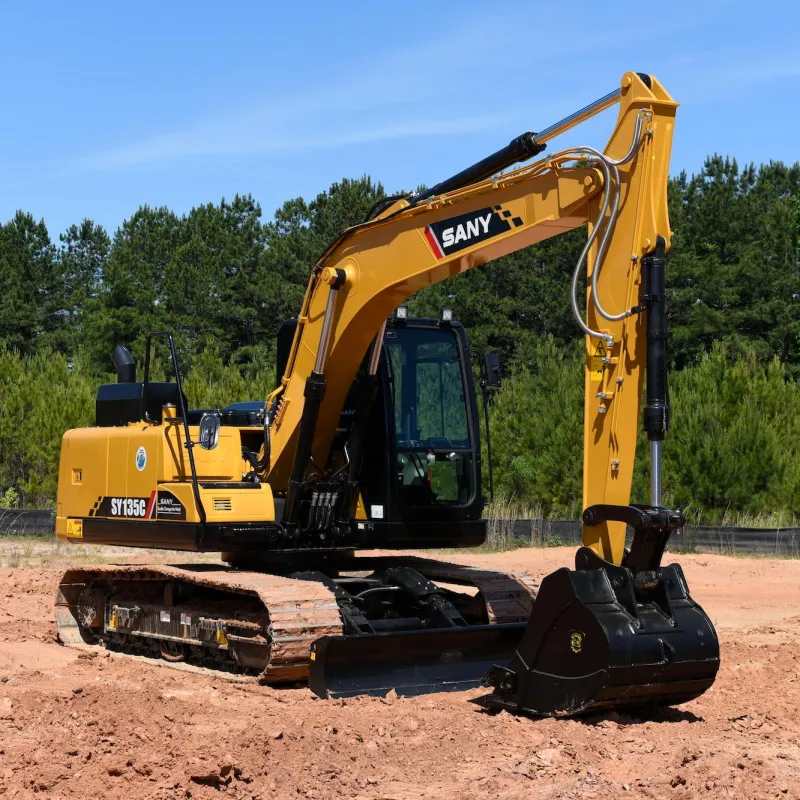

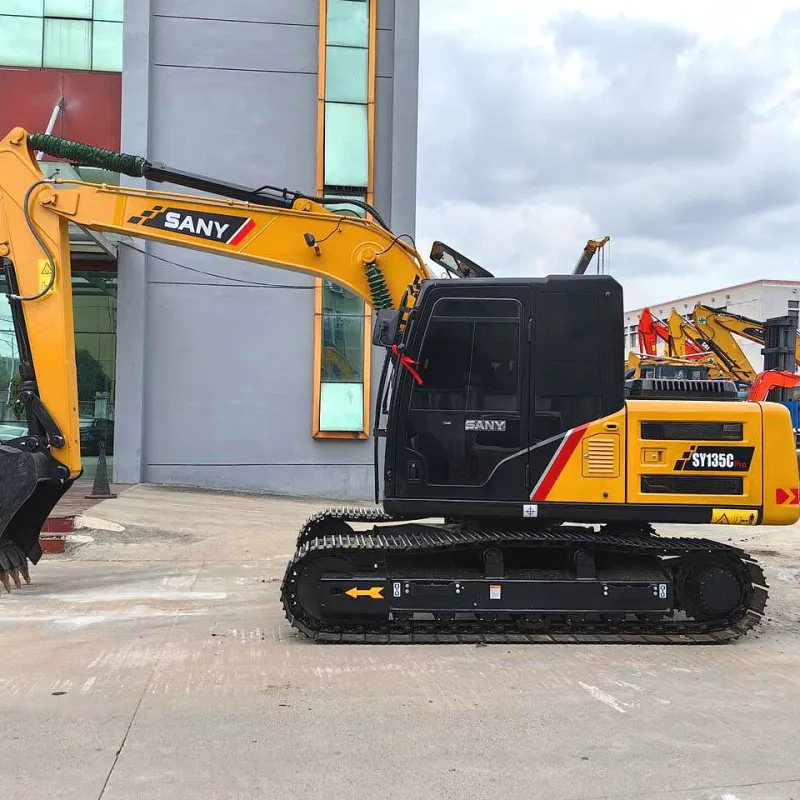

✅ Detailed Description
The Sany SY135C Excavator is a reliable and efficient 14–15 ton class excavator designed for mid-size construction, municipal engineering, and landscaping projects. Compared with smaller compact excavators, it offers stronger digging force and higher productivity, while still maintaining excellent maneuverability in confined spaces.
Powered by the ISUZU 4JJ1X Stage V engine, this Sany excavator delivers 78.5 kW of power with improved fuel efficiency and reduced emissions. The advanced load-sensing hydraulic system ensures smooth, precise control and faster cycle times, improving overall job efficiency.
The machine features a reinforced undercarriage, heavy-duty tracks, and a dozer blade, providing excellent stability and traction even on uneven terrain. Its robust structure ensures durability in tough working environments such as road construction, trenching, and earthmoving projects.
Designed for operator comfort, the SY135C includes a spacious cab with ergonomic controls, wide visibility, and vibration reduction, helping reduce fatigue during long operations. The machine also supports multiple hydraulic attachments, making it highly versatile for different job requirements.
ZW Group supplies brand new Sany excavators with full inspection, global shipping, and after-sales support, making the SY135C excavator a cost-effective and reliable choice for contractors. Contact us today for the best price.
✅ Key Highlights:
Compact 14.8-ton design with excellent maneuverability
ISUZU 4JJ1X Stage V engine for high torque and fuel efficiency
Dual auxiliary hydraulic circuits for versatile tool compatibility
Heavy-duty undercarriage with enhanced ground stability
Operator-focused cabin with comfort and visibility optimization
Whether for urban infrastructure, landscaping, or general earthmoving, the Sany SY135C delivers reliable performance with long-term value for contractors worldwide.
✅ Key Specifications
| Parameter | Metric | Imperial |
|---|---|---|
| Operating Weight | 14,870 kg | 32,783 lbs |
| Engine Model | ISUZU 4JJ1X Stage V | — |
| Rated Power | 78.5 kW @ 2000 rpm | 105.3 HP |
| Displacement | 2.99 L | 182.5 in³ |
| Ground Pressure | 39–41 kPa | 5.9 psi |
| Hydraulic Flow (max) | 242 L/min | 63.9 gal/min |
| Hydraulic Pressure (max) | 34.3 MPa | 4,975 psi |
| Travel Speed | 3.5–5.5 km/h | 2.2–3.4 mph |
| Swing Speed | 12 rpm | — |
| Gradeability | 35° | — |
| Undercarriage | Steel Track | — |
| Track Shoe Width | 600 mm | 24 in |
| Bucket Capacity | 0.6 m³ | — |
✅Other Models
Used Excavator Brand and Model in Stock | |
| CAT | 306，307，312，315，320，325，329，330，336 |
KOMATSU | 55，60，70，120，130，200，210，220, 240，300，350，360，400，450 |
HITACHI | 60，70，120，130，135，200，210，225，300，350，470 |
HYUNDAI | 55，60，110，130，150，200，210，220，225，235，300，305 |
DOOSAN | 55，60，75，140，150，210，220，225，300 |
KOBELCO | SK55，SK75，SK140，SK200，SK210，SK260，SK300，SK350 |
VOLVO | EC55，EC60，EC140，EC210，EC220，EC240，EC250，EC290，EC300，EC350，EC360，EC480 |
| Equipment Type | Brands & Models |
|---|---|
| Excavators | CAT: 312, 315, 320, 323, 325, 329, 330, 336, 340, 345 (B to D models) Komatsu: PC55, PC60, PC120, PC130, PC200, PC210, PC220, PC300, PC350, PC400, PC450 Hitachi: EX120, EX200, EX300, EX350, ZX70, ZX120, ZX150, ZX200, ZX350 Kobelco: SK100, SK120, SK200, SK350 Doosan: DH55, 60, 130, 150, 220, 225, 300 Hyundai: 130W, 150W, 200, 210, 220, 225, 290, 305 Volvo: EC210, EC220, EC290, EC300 |
| Wheel Loaders | CAT: 936, 938, 950, 966, 980, 988 (C to G models) Komatsu: WA250, WA300, WA320, WA350, WA360, WA380, WA400, WA420, WA470 |
| Backhoe Loaders | Model Numbers: 416, 420, 430 JCB: 3CX, 4CX |
| Bulldozers | CAT: D6D, D6H, D6R, D6G, D7H, D7G, D7R, D8K, D8R, D8N, D8L, D9N, D9R, D10N Komatsu: D85, D155, D355 etc. |
| Motor Graders | CAT: 12G, 14G, 120G, 140G, 140H, 140K Komatsu: GD511A, 623 |
| Rollers | DYNAPAC: CA25, CA30, CA301, CA251, CA511 series BOMA-G: 213, 217, 219, 225 series |
| Forklifts | Toyota TCM: 2 to 25 tons |
🚜 Looking for a Compact and Efficient 15-Ton Excavator?
Get your Brand New Sany SY135C Excavator today and experience unmatched power, control, and reliability in every digging operation. Watch our demo videos to see how it performs in real-world construction and earthmoving projects.
Stay connected on YouTube and Facebook for the latest product updates, site demonstrations, and customer success stories from around the world.
