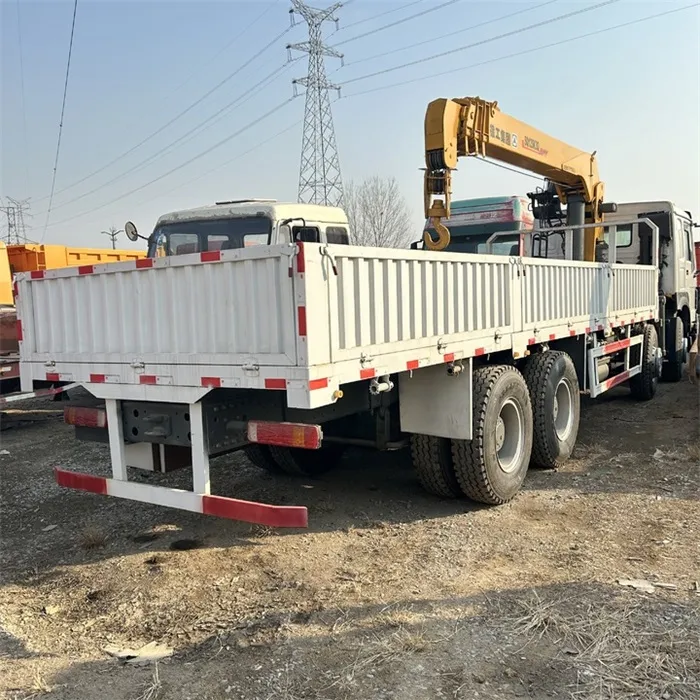

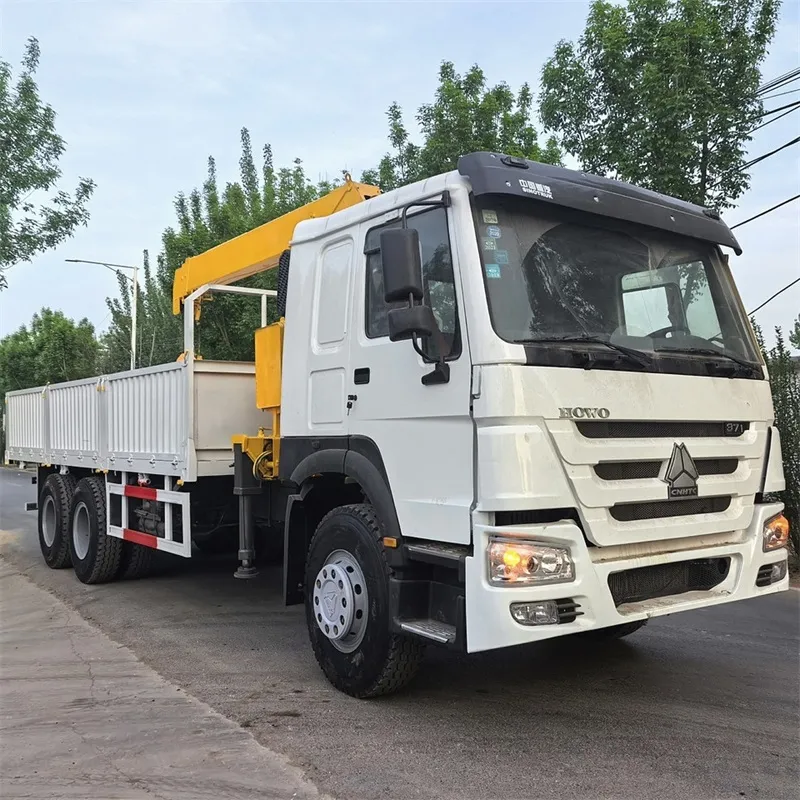

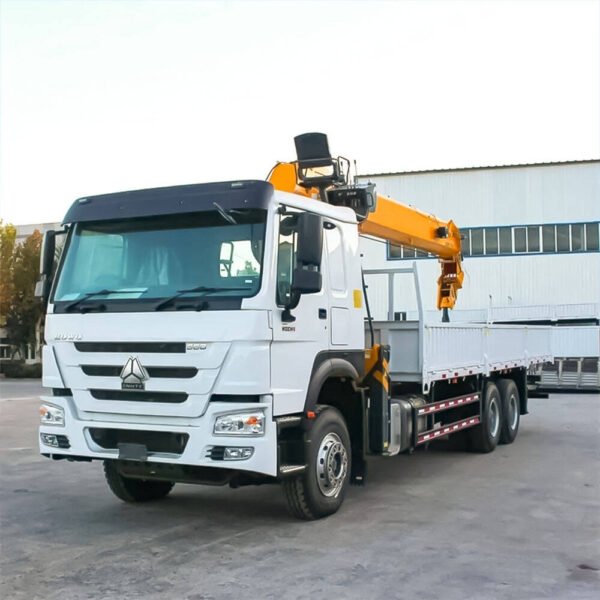

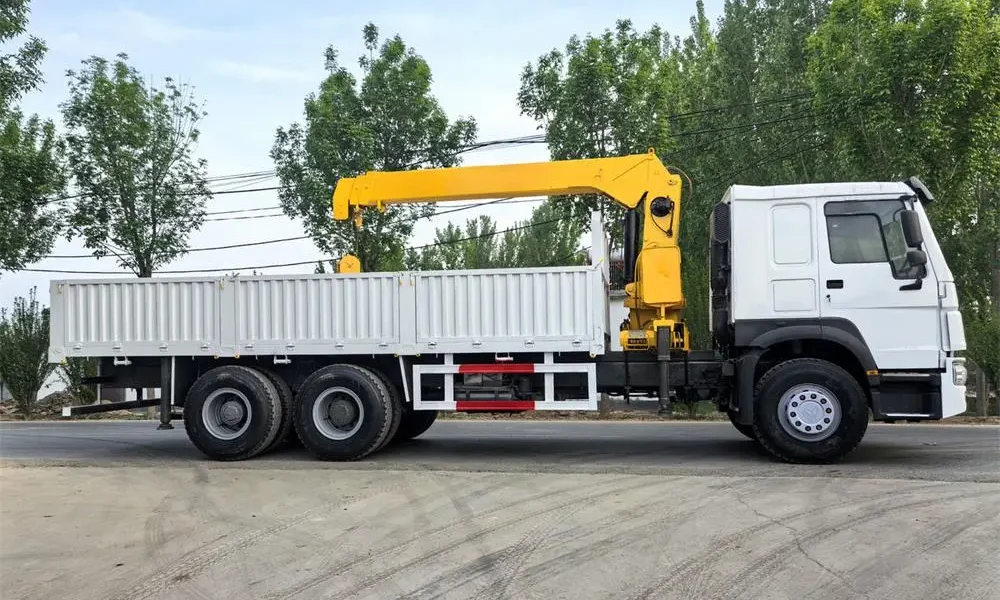

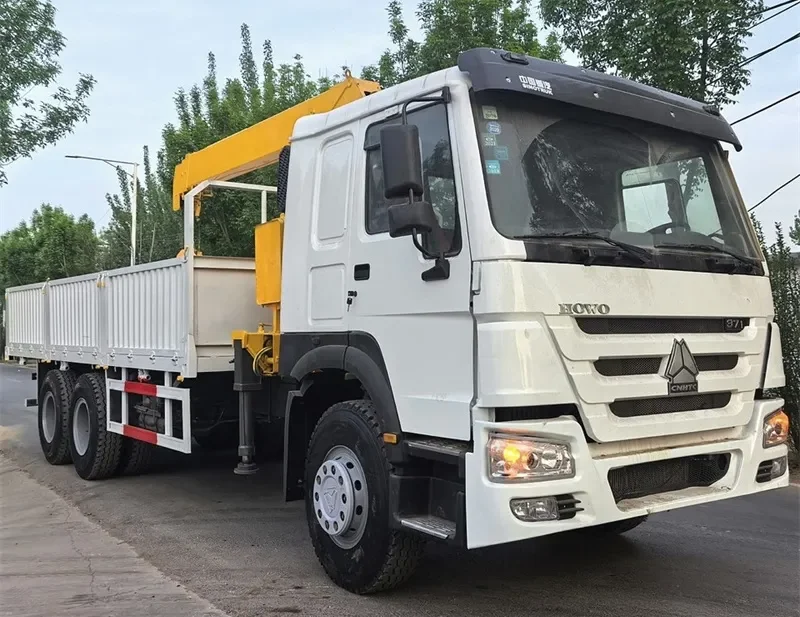

HOWO 6×4 Truck Mounted Crane
✅ Detailed Description
The HOWO 6×4 Truck Mounted Crane is designed for robust on-site lifting and transport. Featuring a powerful 336hp to 400hp diesel engine and all-wheel drive, it’s ideal for construction, mining, and logistics. The crane comes with options for straight or folding arms, supporting 5 to 20 tons of lifting capacity.
Built on the reliable HOWO chassis, this model offers high maneuverability and stability, even on rugged terrain. Its integrated hydraulic system supports 360° rotation and fast lifting, while optional features like radio remote control and top-seat operation ensure precision handling. Compared with mobile cranes, this truck-mounted version is more efficient and economical.
The crane can operate independently, loading and unloading cargo without external assistance. Equipped with leading crane brands like XCMG, Palfinger, or Chengli, it ensures high performance and long service life. Its compact boom structure, over-wind alarm, and anti-swing features enhance safety during operation.
This model is available with left- or right-hand drive, and the high-strength flatbed body ensures optimal weight distribution and durability. Standard features include ZF steering, HW19710 gearbox, 12.00R22.5 radial tires, and hydraulic stabilizers.
✅ Key Specifications
| Specification | Details |
|---|---|
| Drive Type | 6×4 all-wheel drive |
| Engine Power | 336–400 HP |
| Crane Type | Folding arm / Straight arm (optional) |
| Crane Lifting Capacity | 5 t / 10 t / 15 t / 20 t |
| Rotation | 360°, full hydraulic rotation |
| Hydraulic Pressure | Max 26 MPa |
| Oil Flow | 63 L/min |
| Crane Moment | Max 25 T.M |
| Cargo Size | 6500×2300×600 mm |
| Transmission | HW19710, 10 forward, 2 reverse |
| Fuel Tank | 400 L (aluminum alloy) |
| Front/Rear Axle | VGD95 / HC16 |
| Suspension | Reinforced leaf spring |
| Tires | 12.00R22.5 radial |
| Steering | ZF8118 power steering |
| Stabilizers | Hydraulic, 4-point with rear support legs |
| Max Speed | 102 km/h |
| Curb Weight | 14,525 kg |
| Emission Standard | Euro II |
| Delivery Time | 15–20 days |
| Supply Capacity | 10,000 units/month |
