✅ Detailed Description

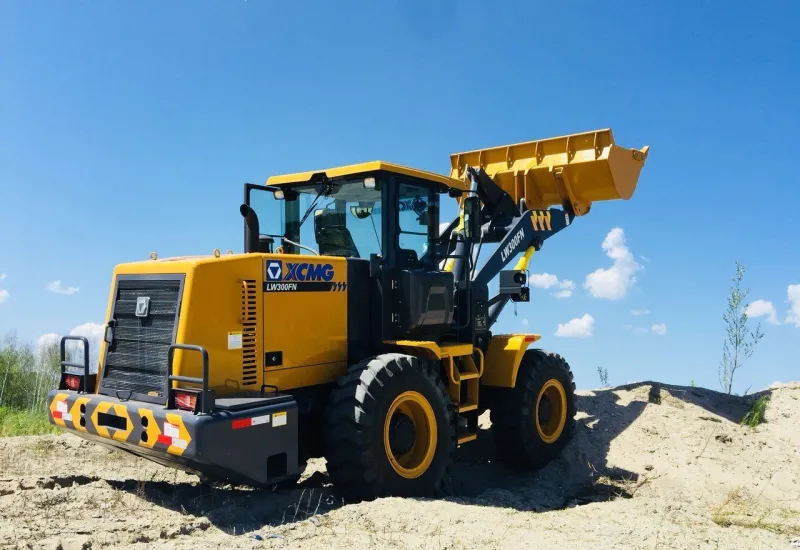

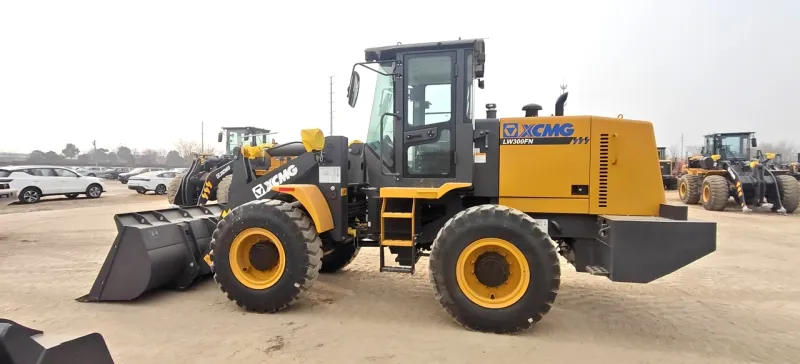

The Brand New XCMG LW300FN Wheel Loader is XCMG’s solution for compact, high-performance material handling equipment. With a powerful Weichai WP6G125E22 engine delivering 92 kW at 2200 rpm, the LW300FN combines fuel efficiency, precise hydraulics, and exceptional maneuverability. Its load-sensing hydraulic system provides smooth control and accurate material handling, while the reinforced boom and heavy-duty chassis deliver reliable durability for long-term operation.
Equipped with a comfortable cabin featuring ergonomic layout, wide visibility, and adjustable seating, operators can work efficiently during extended shifts. Its compact size and short turning radius make it ideal for urban construction, road repair, and municipal projects where space is limited.
The LW300FN offers strong breakout force (130 kN), lift height of up to 4,870 mm, and bucket capacity ranging from 1.5–2.5 m³. Optimized gear ratios, responsive steering, and stable transmission ensure smooth, reliable operation across soil, sand, gravel, and other materials.
Built with high-quality steel and advanced welding technology, this wheel loader provides long-term service life, reduced maintenance downtime, and excellent fuel economy, making it a cost-effective choice for contractors seeking versatility and performance in one machine.
✅ Key Specifications
| Parameter | Value |
|---|---|
| Rated operating load | 3,000 kg |
| Bucket capacity | 1.5–2.5 m³ |
| Operating weight | 10,600 ± 200 kg |
| Dump clearance (max lift) | 2,770–3,260 mm |
| Reach at max lift | 1,010–1,210 mm |
| Wheelbase | 2,600 mm |
| Tread | 1,850 mm |
| Working height (fully lifted) | 4,870 mm |
| Max breakout force | 130 kN |
| Max horsepower | 95 kN |
| Hydraulic cycle time – raise | 5.5 s |
| Total hydraulic cycle time | 10 s |
| Min turning radius over tyres | 5,165 mm |
| Articulation angle | 35 ± 1° |
| Gradeability | 28° |
| Tyre size | 17.5-25-12PR |
| Overall dimensions (L×W×H) | 7,050 × 2,482 × 3,118 mm |
| Engine model | WP6G125E22 |
| Emission standard | Emission 2 |
| Rated power/speed | 92 kW / 2,200 rpm |
| Fuel tank | 170 L |
| Hydraulic tank | 170 L |
