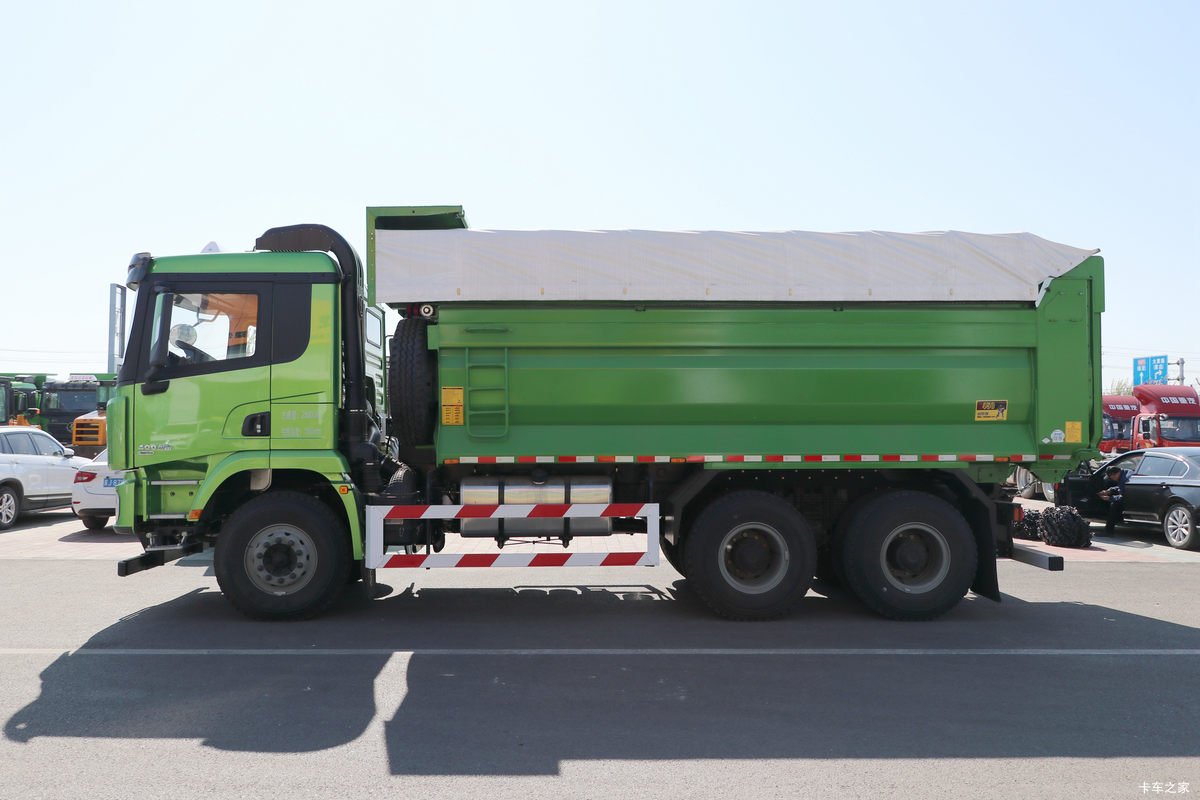

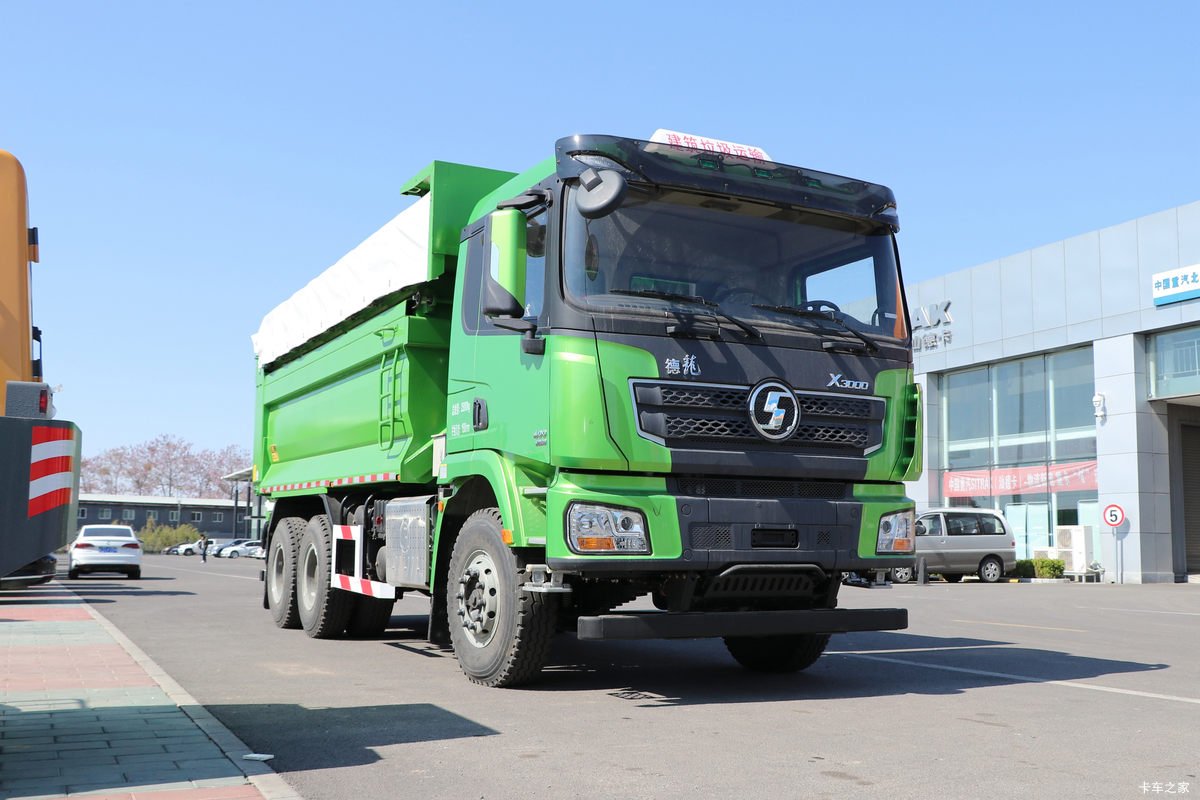

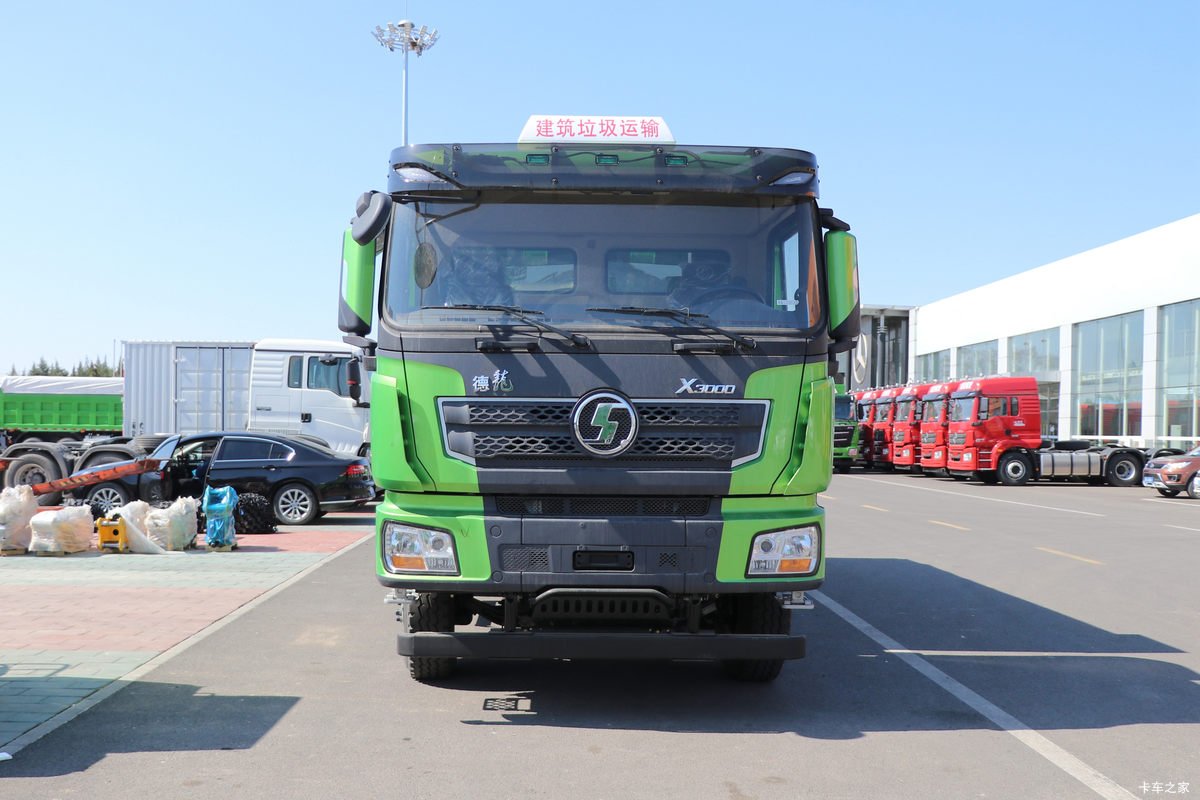

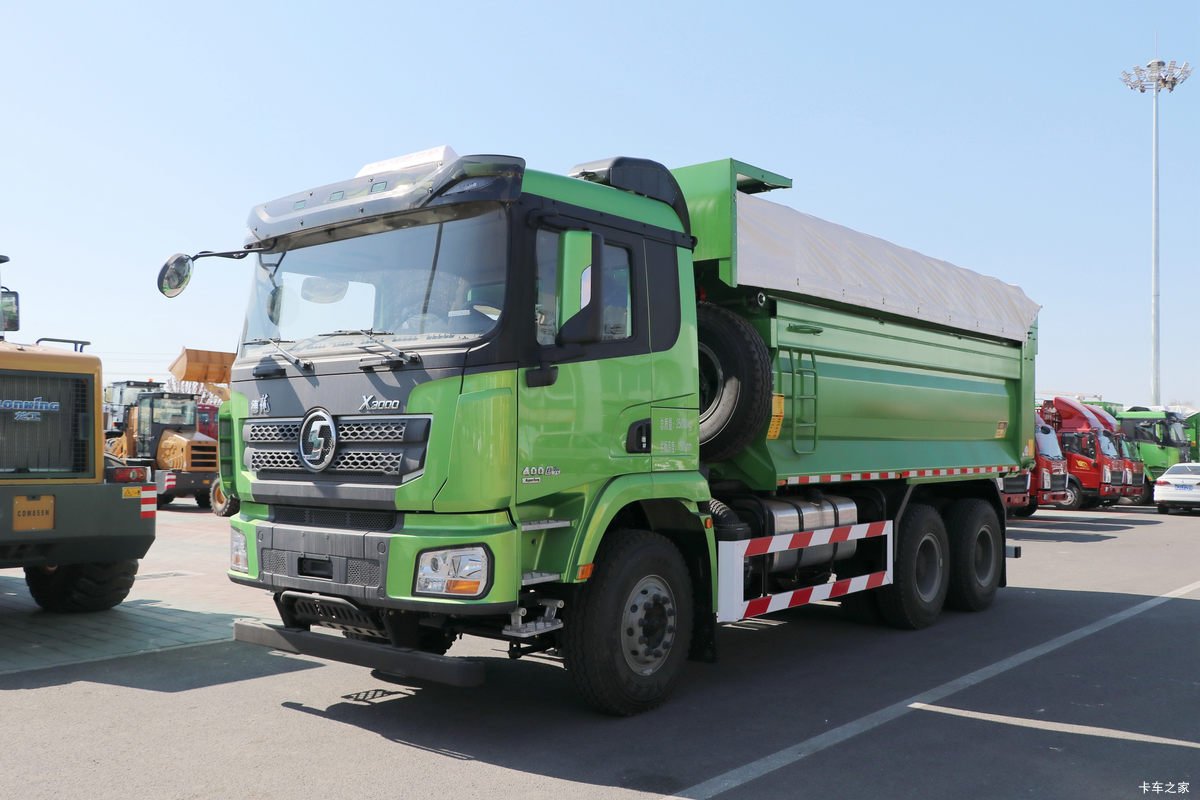

Shacman X3000 400HP 6×4 Dump Truck
✅ Detailed Description
Powerful Engine & Transmission
Equipped with the Weichai WP12.400E62 Euro VI engine, this truck delivers 400 horsepower and 2000N·m torque, providing excellent hauling power and fuel efficiency. The Fast 12JSD200T 12-speed gearbox ensures smooth shifting and reliable performance in both urban and off-road operations.
Heavy-Duty Chassis & Axles
The 6×4 drive system combined with 16T MAN heavy-duty axles and a final drive ratio of 5.262 ensures stability, traction, and outstanding durability even under maximum load. This makes the X3000 ideal for demanding construction and mining applications.

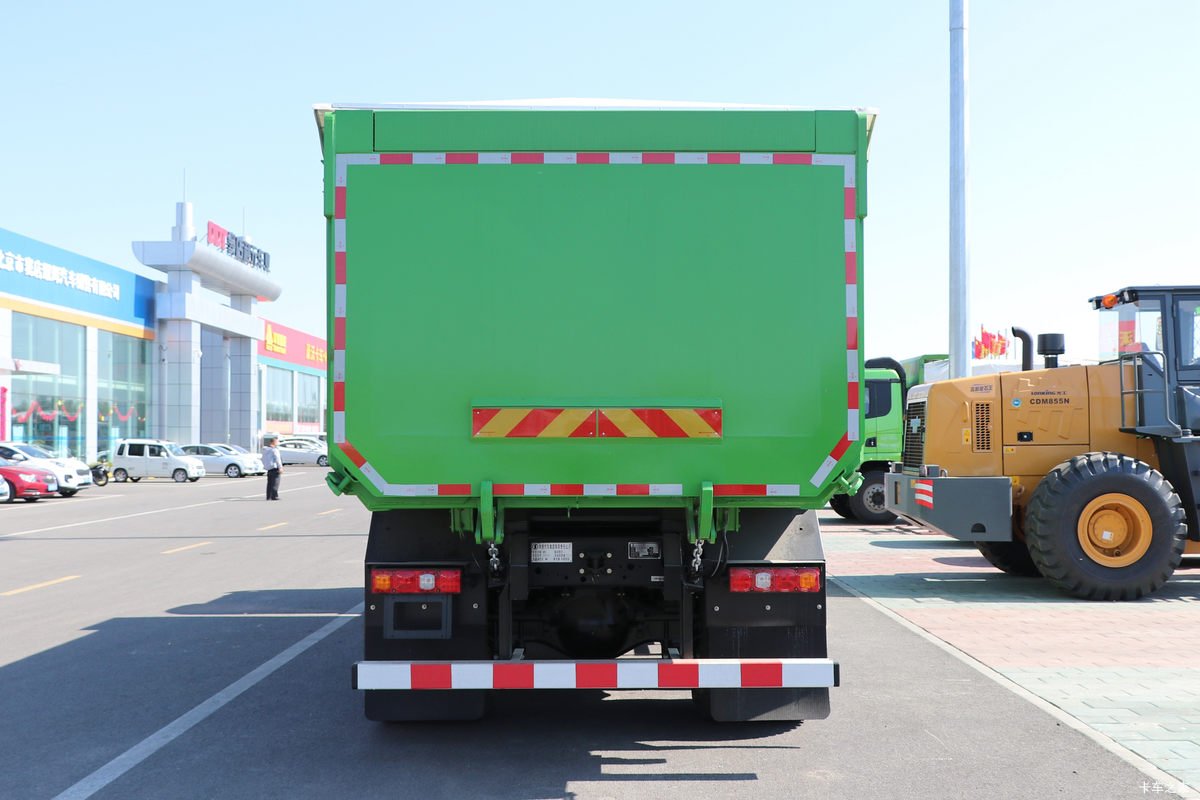

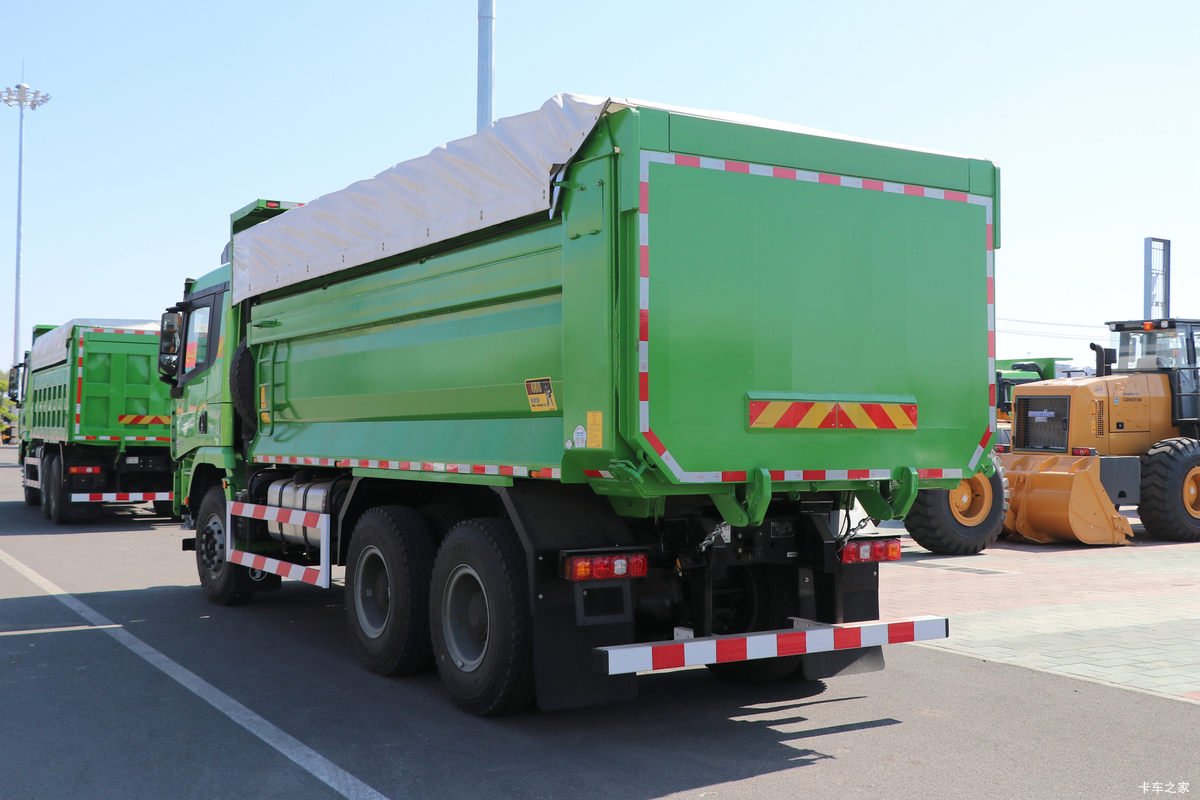

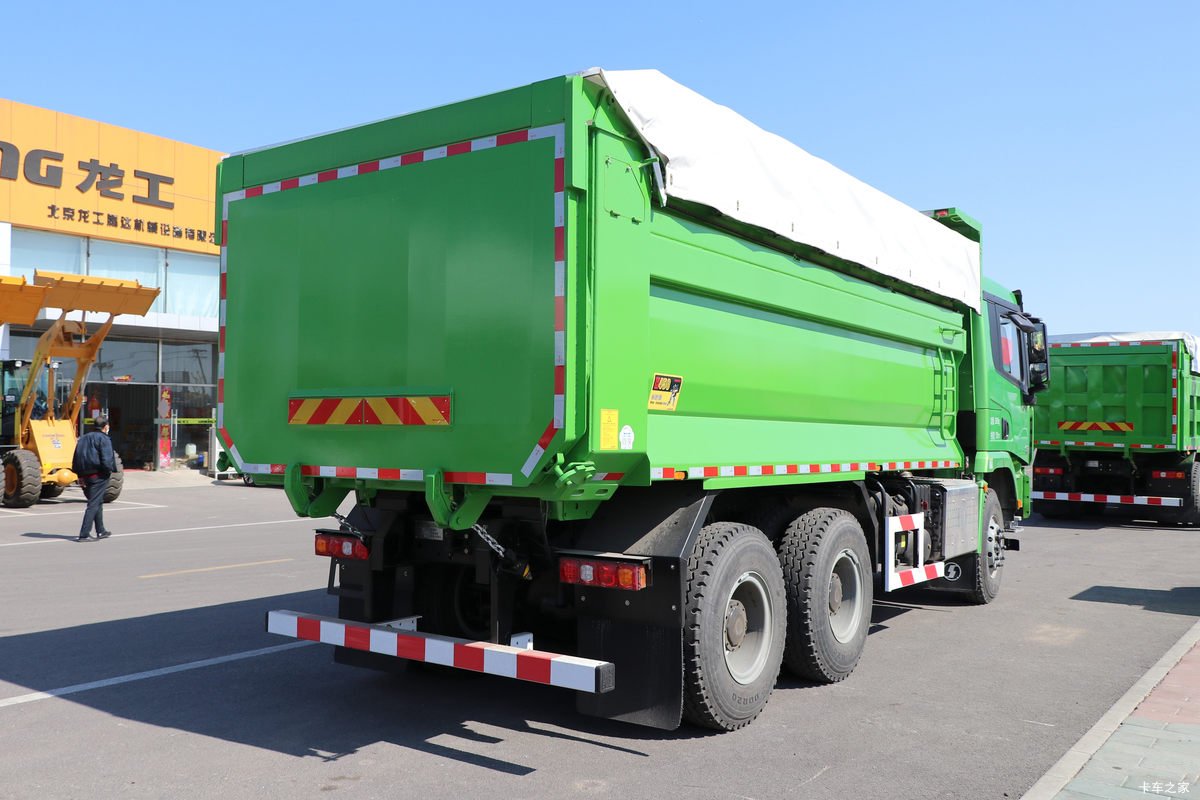

Reinforced Dump Body
The 5.8m cargo box (L×W×H: 5800 × 2350 × 1500 mm) is built from high-strength steel, offering superior resistance to wear and impact. With its advanced hydraulic self-unloading system, it allows faster unloading of sand, gravel, ore, and construction waste, significantly improving work efficiency.

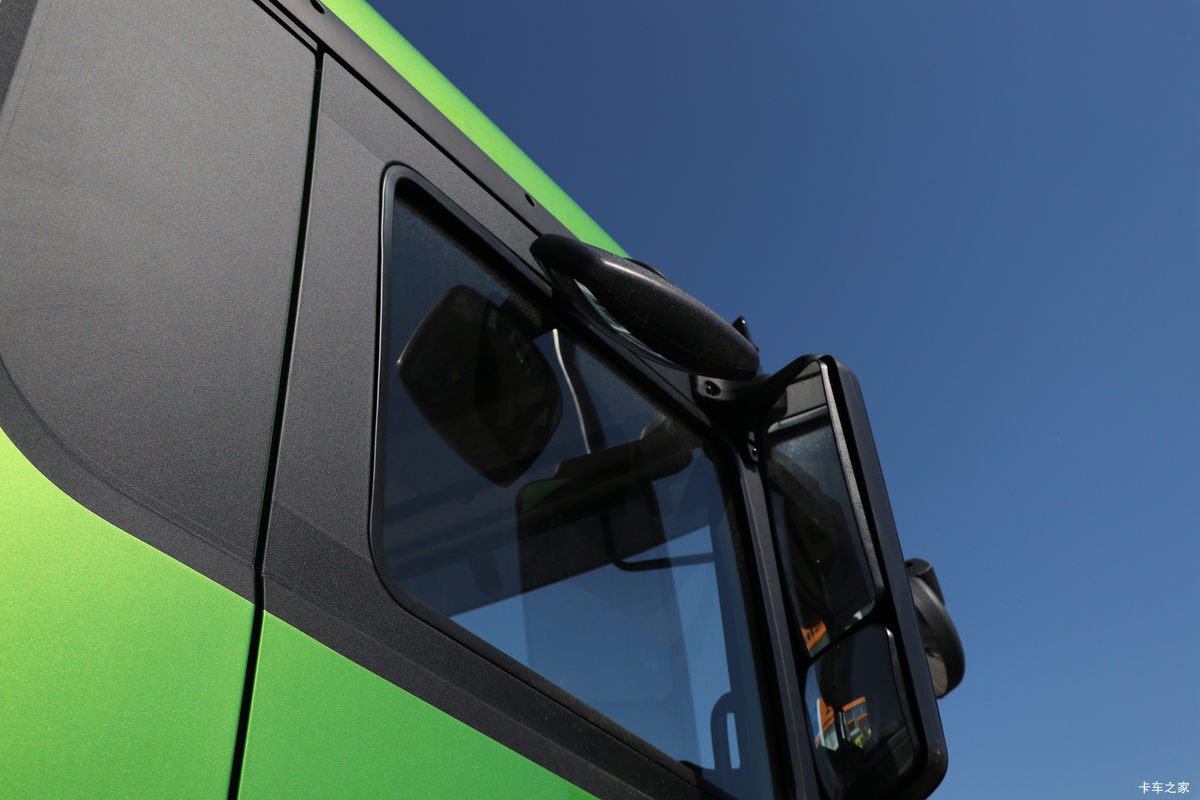

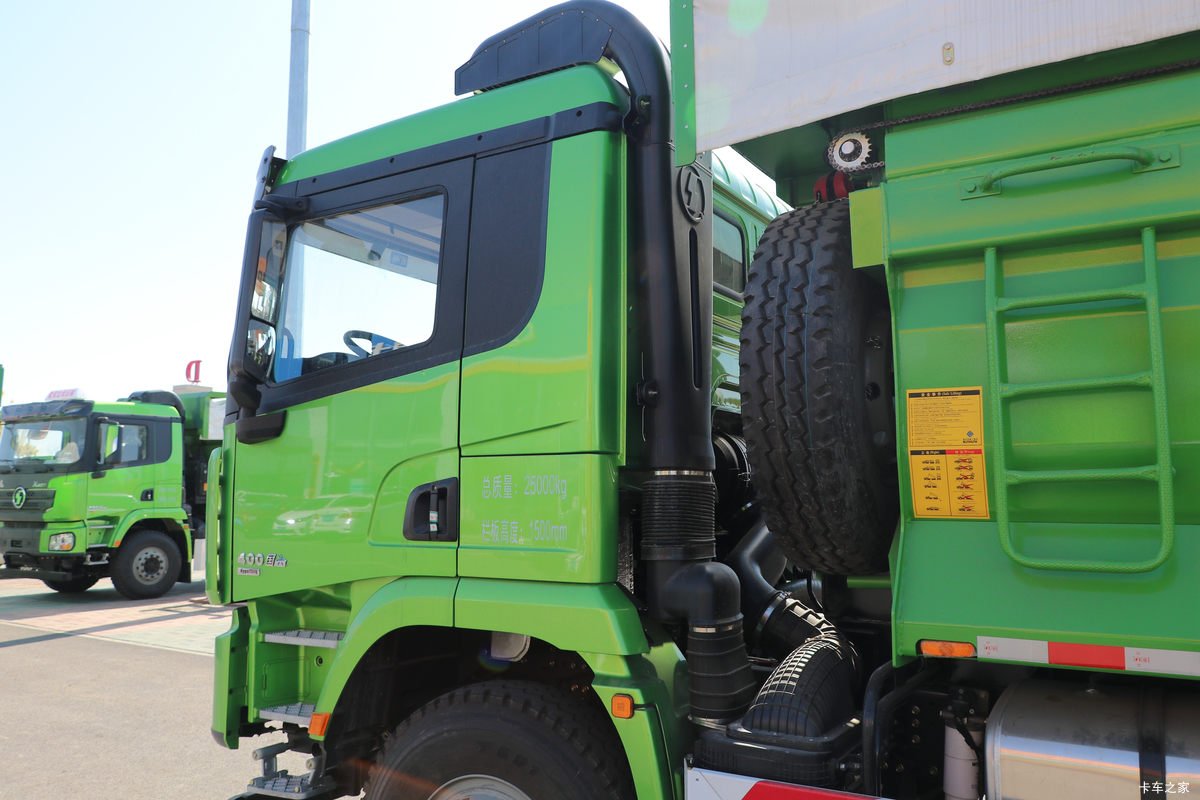

Driver Comfort & Safety Features
The X3000 cabin is ergonomically designed for long working hours:
Hydraulic main driver’s seat with shock absorption
Four-point suspension cab to minimize vibration
Air conditioning system for driver comfort
ABS anti-lock braking system for enhanced safety
Electric windows, multimedia control screen, and GPS recorder
Long-Lasting Reliability
A 400L aluminum alloy fuel tank ensures extended driving range, reducing refueling frequency. The 12.00R20 16PR tires provide excellent wear resistance, strong grip, and stability on rough terrain. All major components undergo strict quality checks to guarantee durability and low maintenance costs.
Wide Range of Applications
Construction Projects: Transport of sand, gravel, crushed stone, and construction debris
Mining Operations: Hauling coal, iron ore, limestone, and other bulk minerals
Infrastructure Development: Road building, dam construction, port expansion projects
Urban Projects: Efficient handling of city construction waste and logistics support
Key Benefits at a Glance
✔ 400HP Weichai Euro VI engine for power and efficiency
✔ 12-speed Fast gearbox for smooth gear shifting
✔ 5.8m reinforced dump body with hydraulic lifting
✔ Heavy-duty MAN axles and durable chassis
✔ Comfortable, safe, and driver-friendly cabin design
✔ Low maintenance, high reliability, and cost efficiency
✅ Key Specifications
| Category | Details |
|---|---|
| Model | SX3259XD404 |
| Drive Type | 6×4 |
| Wheelbase | 3975 + 1400 mm |
| Dimensions (L×W×H) | 8600 × 2550 × 3500 mm |
| Curb Weight | 12.5 tons |
| Payload Capacity | 12.37 tons |
| Gross Vehicle Weight | 25 tons |
| Engine Model | Weichai WP12.400E62 |
| Horsepower | 400 HP |
| Displacement | 11.6L |
| Max Torque | 2000 N·m @ 1000–1400 rpm |
| Emission Standard | Euro VI |
| Transmission | Fast 12JSD200T, 12 forward gears + 2 reverse |
| Axles | Front: 7T MAN, Rear: 16T MAN (ratio 5.262) |
| Cargo Box (L×W×H) | 5800 × 2350 × 1500 mm |
| Fuel Tank | 400L aluminum alloy |
| Suspension | Multi-leaf springs (10/12) |
| Tires | 12.00R20, 10 pcs + 1 spare |
| Braking System | ABS |
| Cabin | X3000 with A/C, electric windows, multimedia screen, GPS/Beidou recorder |
✅ Shipping Scenarios
ZW Group ensures secure packaging, careful loading, and safe delivery of the Shacman Delong X3000 400HP 6×4 Dump Truck. Each unit is strictly inspected to confirm that the Weichai engine, gearbox, MAN axles, and dump body are well protected during transit.
Depending on size and destination, we arrange bulk cargo vessels, flat rack containers, or Roll-on/Roll-off (Ro-Ro) shipment, ensuring timely and damage-free delivery.
Through professional handling and strict quality checks, ZW Group guarantees reliable logistics solutions, serving clients across Africa, the Middle East, and Southeast Asia.
🚛Built for Maximum Payloads?
Get the job done with the Shacman Delong X3000 400HP 6×4 Dump Truck —designed for durability, power, and performance. Contact us now for pricing and delivery details!
