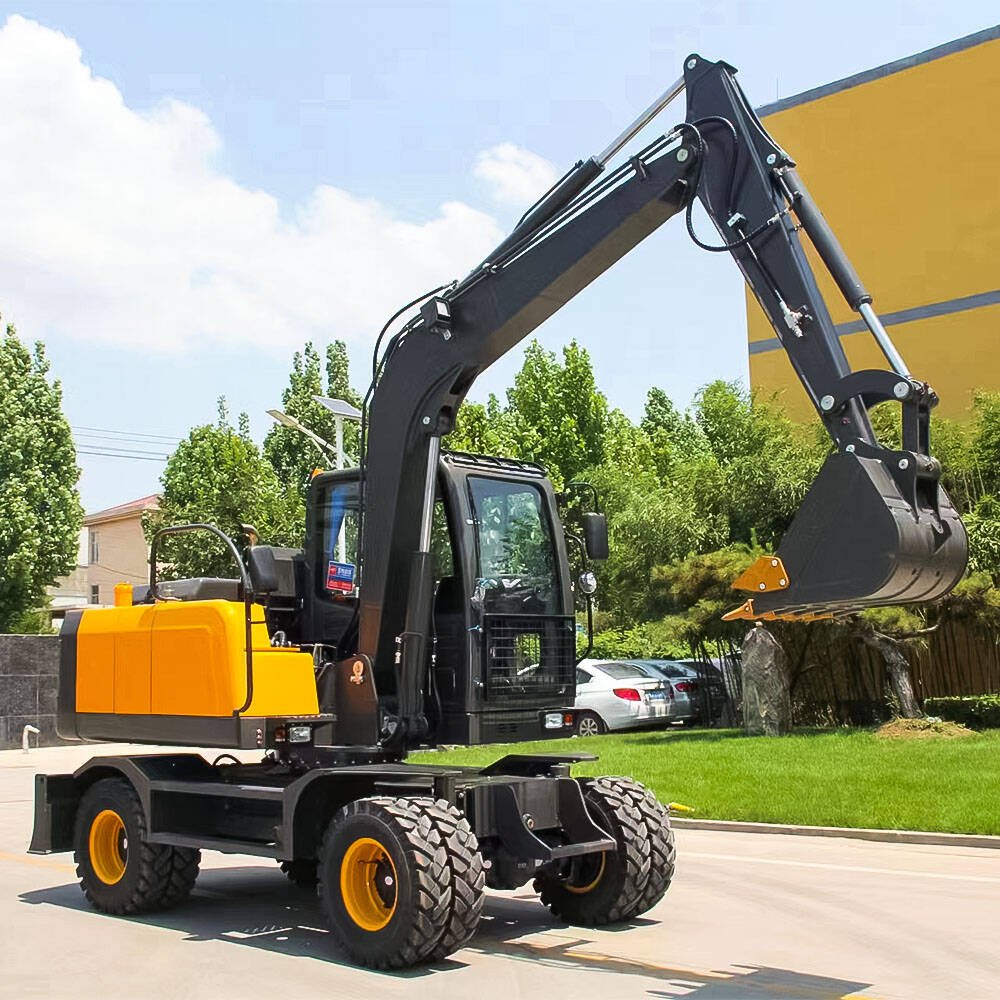

ZW mini excavator with YC4DK85 engine

Compact and powerful ZW mini excavator equipped with the efficient YC4DK85 engine, delivering strong performance and excellent fuel economy for versatile construction tasks.

Category:

✅ Detailed Description

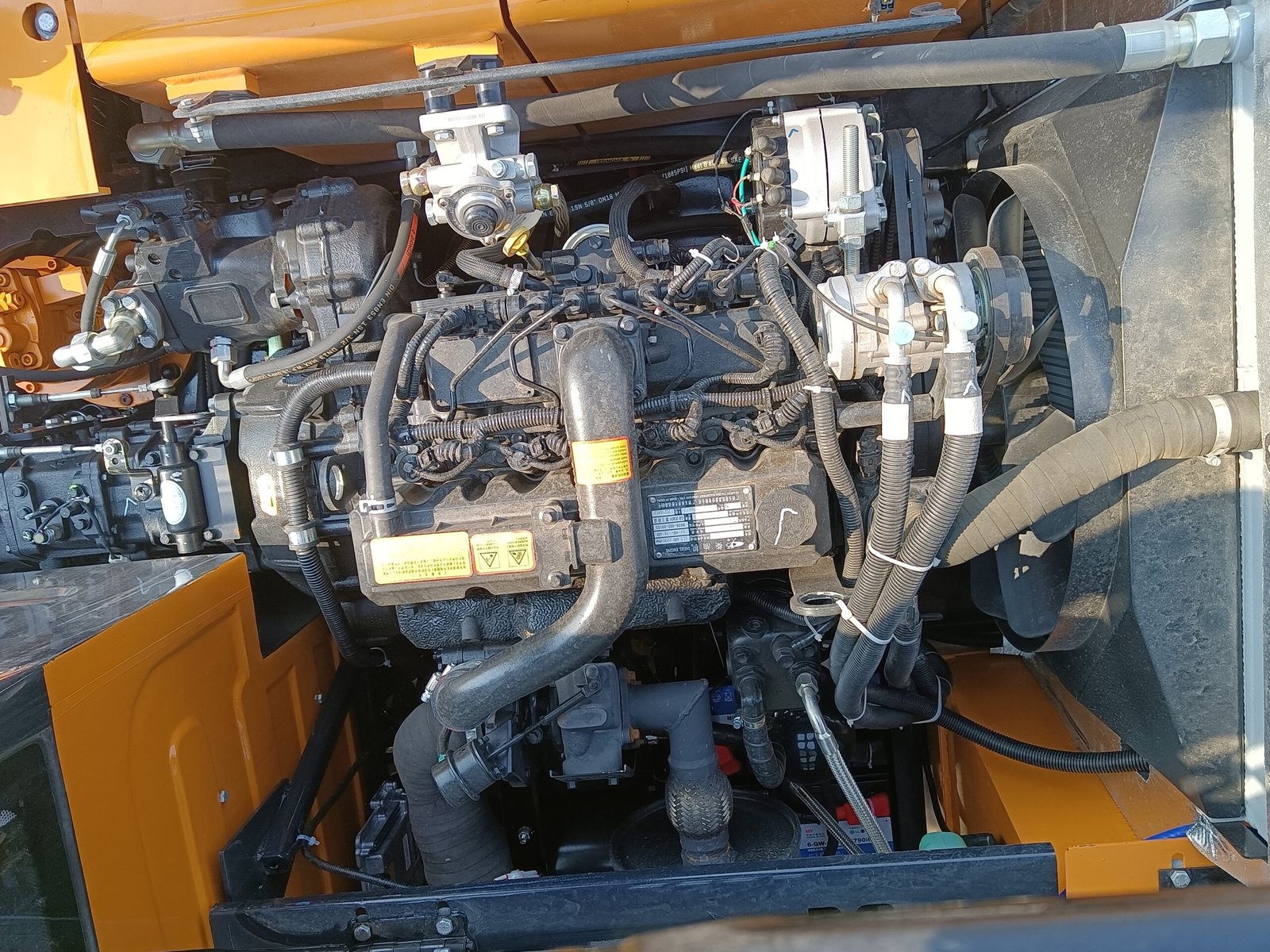

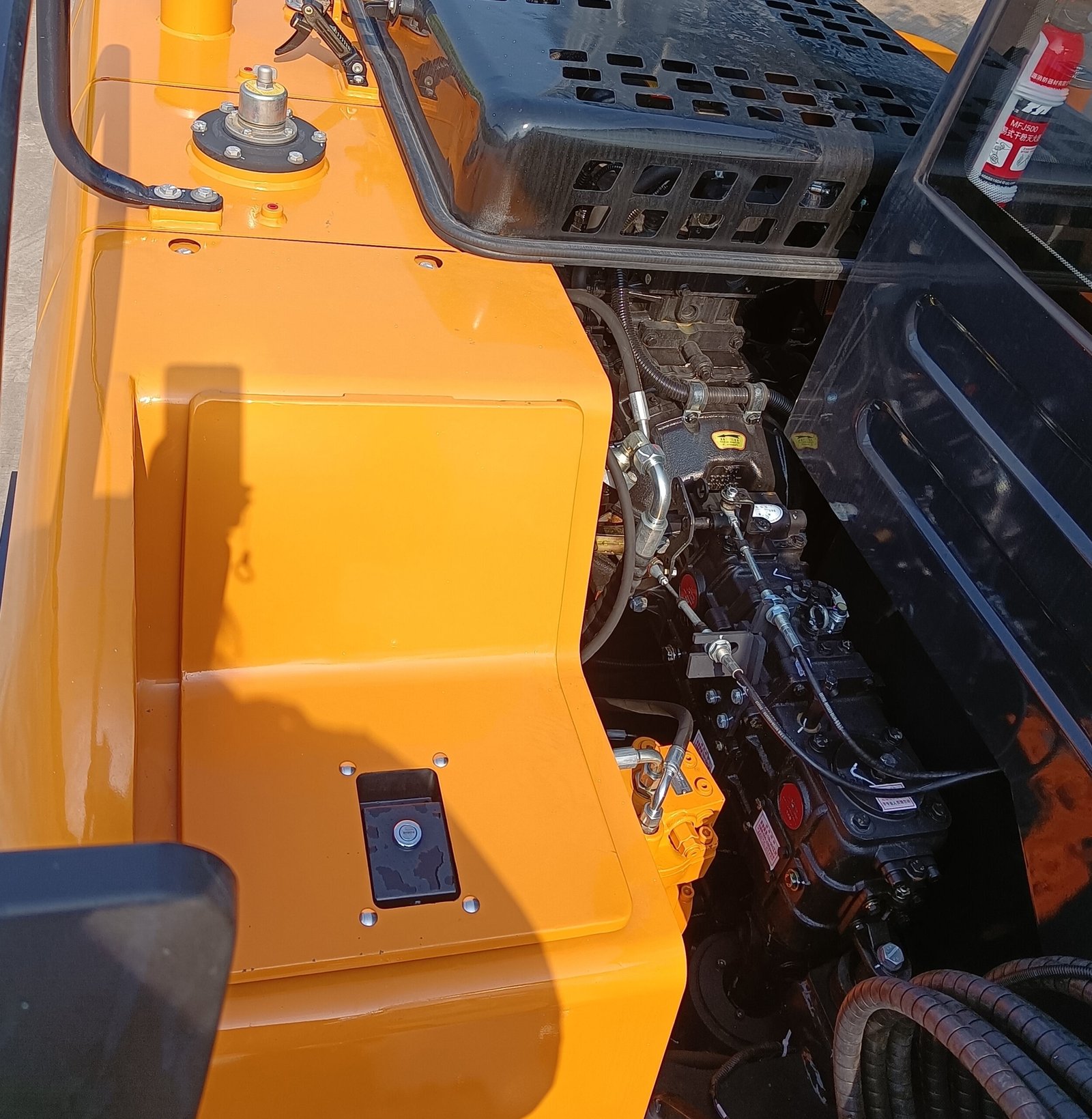

The ZW mini excavator, equipped with the powerful YC4DK85 engine, offers exceptional performance and fuel efficiency, making it an excellent choice for various construction, landscaping, and excavation tasks. Furthermore, its compact size allows it to operate efficiently in confined spaces where larger machines cannot fit. In addition to its robust engine, the machine features an advanced hydraulic system with a system pressure of 24 MPa, which ensures smooth and precise control during operation.

Moreover, this mini excavator boasts impressive digging capabilities, including a maximum digging depth of 3.82 meters and a maximum vertical digging depth of 2.7 meters, allowing it to handle a wide range of digging and trenching jobs. It also provides excellent gradeability at 25°, enabling it to perform well even on steep or uneven terrain. The optimized design, including a minimum ground clearance of 260 mm and a tail swing radius of 1940 mm, further enhances maneuverability and operational flexibility.

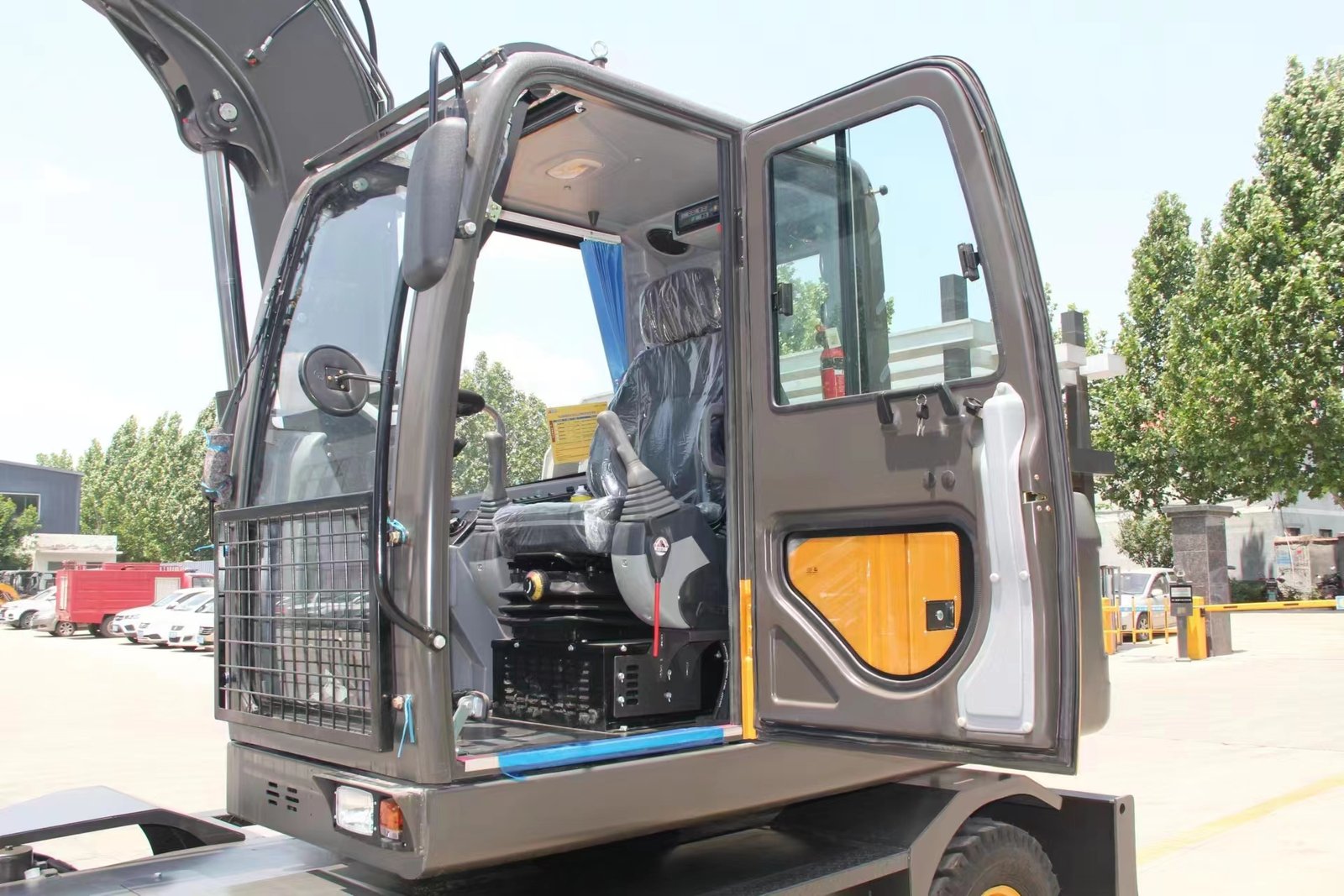

In addition, the machine is built with durability in mind, featuring a sturdy frame and high-quality components that reduce maintenance costs and prolong service life. The ergonomic cabin, with a height of 2850 mm, offers a comfortable working environment for operators, contributing to increased productivity and reduced fatigue.

Therefore, whether you are working on urban construction sites, agricultural projects, or landscaping, the ZW mini excavator combines power, efficiency, and versatility, making it a reliable and cost-effective solution. Overall, this machine stands out not only for its technical specifications but also for its ability to deliver consistent, high-quality performance in diverse working conditions.

✅ Key Specifications

SpecificationDetails
Engine ModelYC4DK85
Engine Power (kW/rpm)62.5 / 2200
Bucket Capacity (m³)0.21
Swing Speed (rpm)0-12
Gradeability (°)25
Max. Bucket Digging Force (kN)45
Max. Arm Digging Force (kN)36
Tire Model8.25-16
System Pressure (MPa)24
Dimensions (L×W×H mm)6300 × 2205 × 2850
Cabin Height (mm)2850
Axle Base (mm)2400
Wheel(track) Distance (mm)1675
Minimum Ground Clearance (mm)260
Tail Swing Radius (mm)1940
Max. Digging Height (mm)6245
Max. Dumping Height (mm)4630
Max. Digging Depth (mm)3820
Max. Vertical Digging Depth (mm)2700
Max. Digging Radius (mm)6360
Min. Swing Radius (mm)2450
Max. Dozer Blade Lifting Distance (mm)310
Max. Dozer Blade Cutting Depth (mm)130
